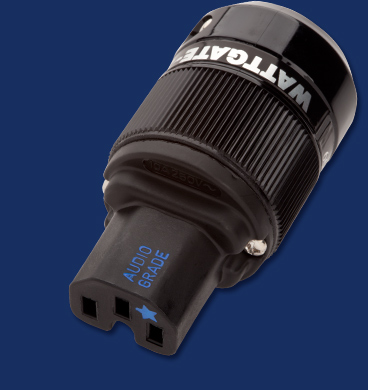

350i RH Audio Grade IEC Connector
- ★ Audio Grade
- Large, high spring-rate contacts
- Perma-Lock Terminals
- Accepts 10 to 16 awg wire
- Accepts 16mm cable diameter
- Glass filled high temperature nylon front housing
- Polycarbonate rear housing
- Stainless hardware
- Wattgate Four Layer Plating Process*
- 15A/125VAC
- 10A/250VAC
- *WATTGATE Four Layer Plating Process
- 1. Oxygen free copper plating
- improves conductivity
- 2. Electroless nickel plating
- necessary to prevent the leeching of the copper through the pure gold layer
- 3. 24k gold plating
- improves conductivity
- 4. Pure Rhodium plating
